PowerBlockling

$ 8.32

In stock

Tiny power button and status indicator solution for the Raspberry Pi.

In stock

SKU: powerblockling Categories: ,

Description

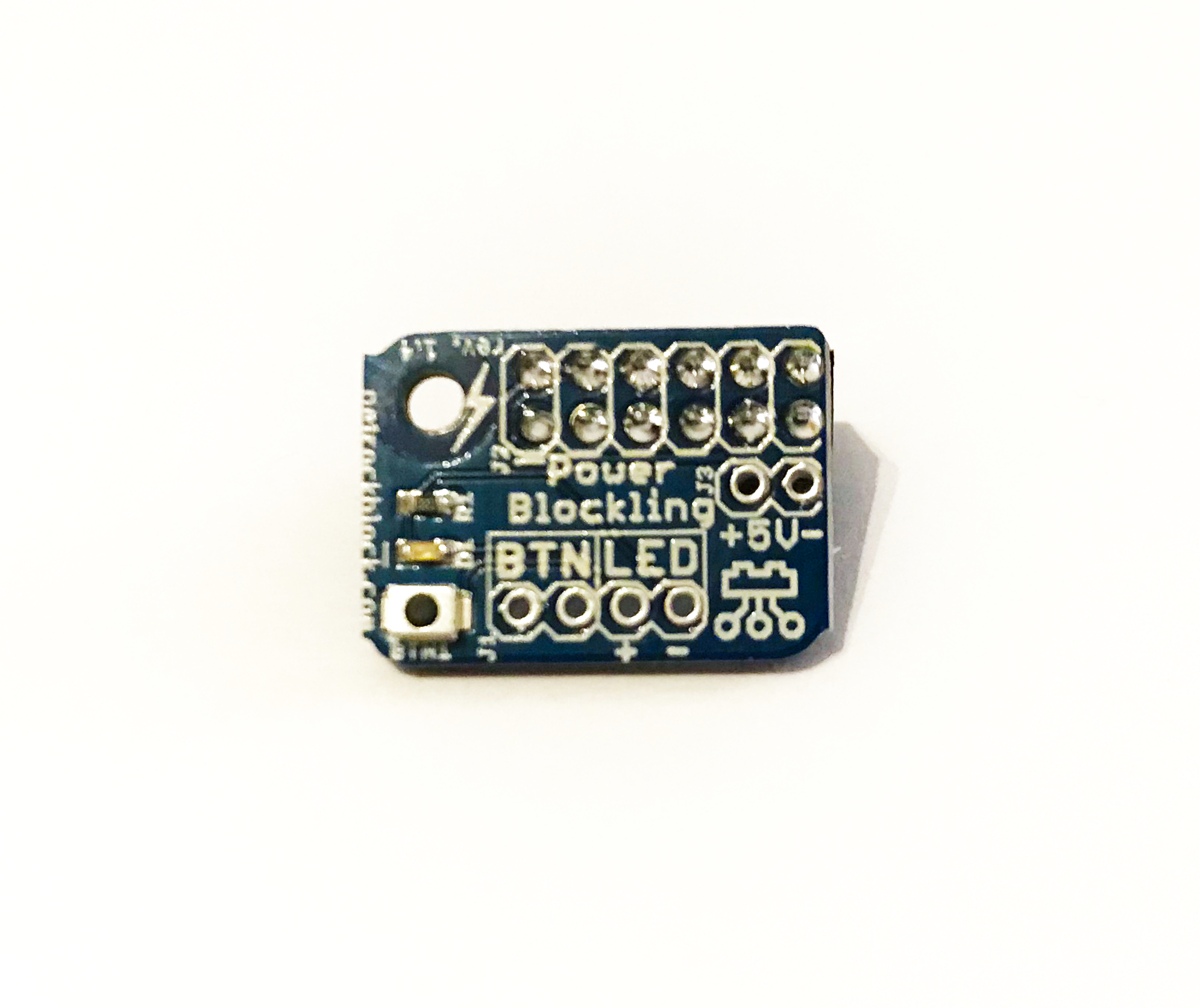

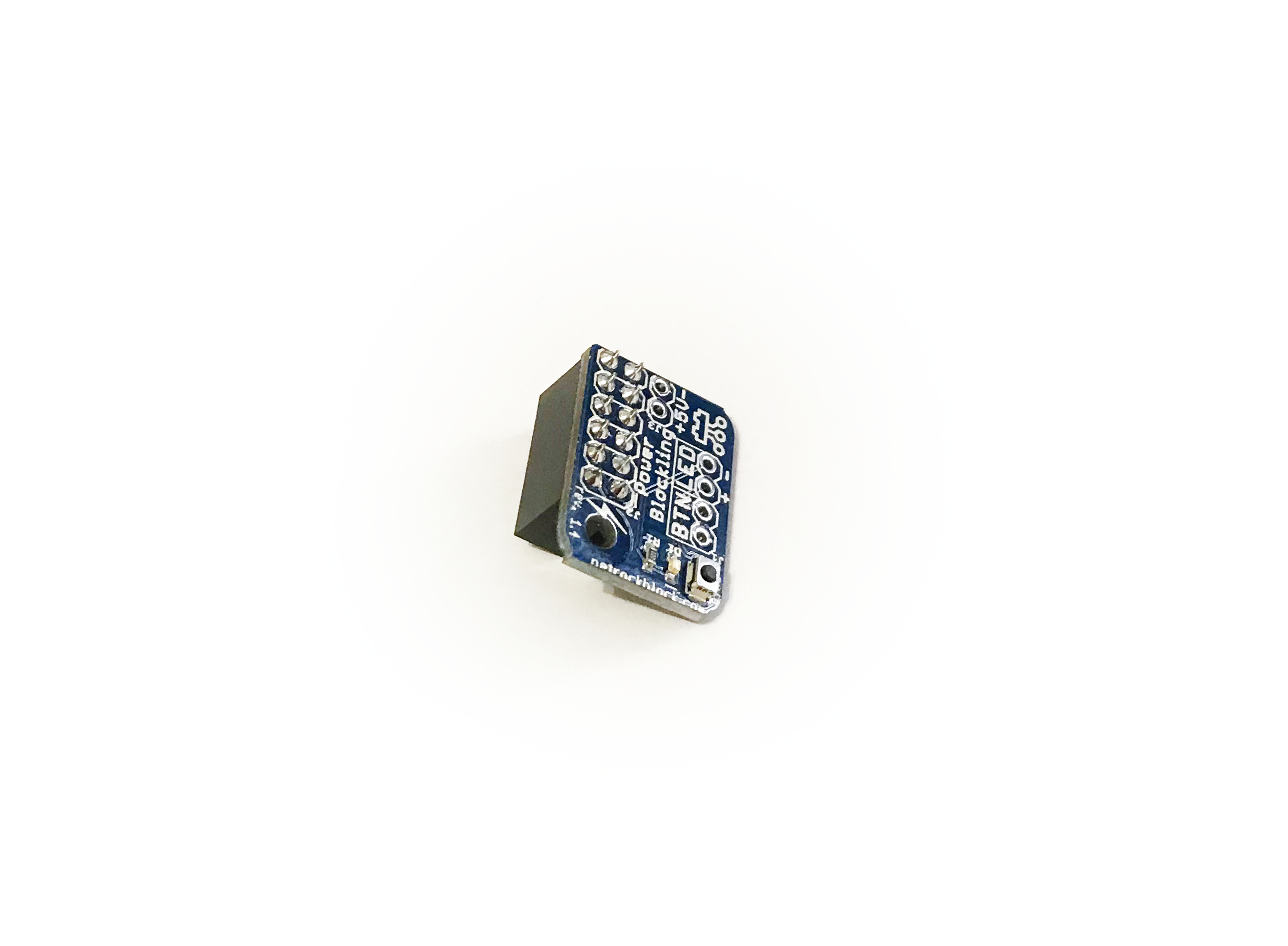

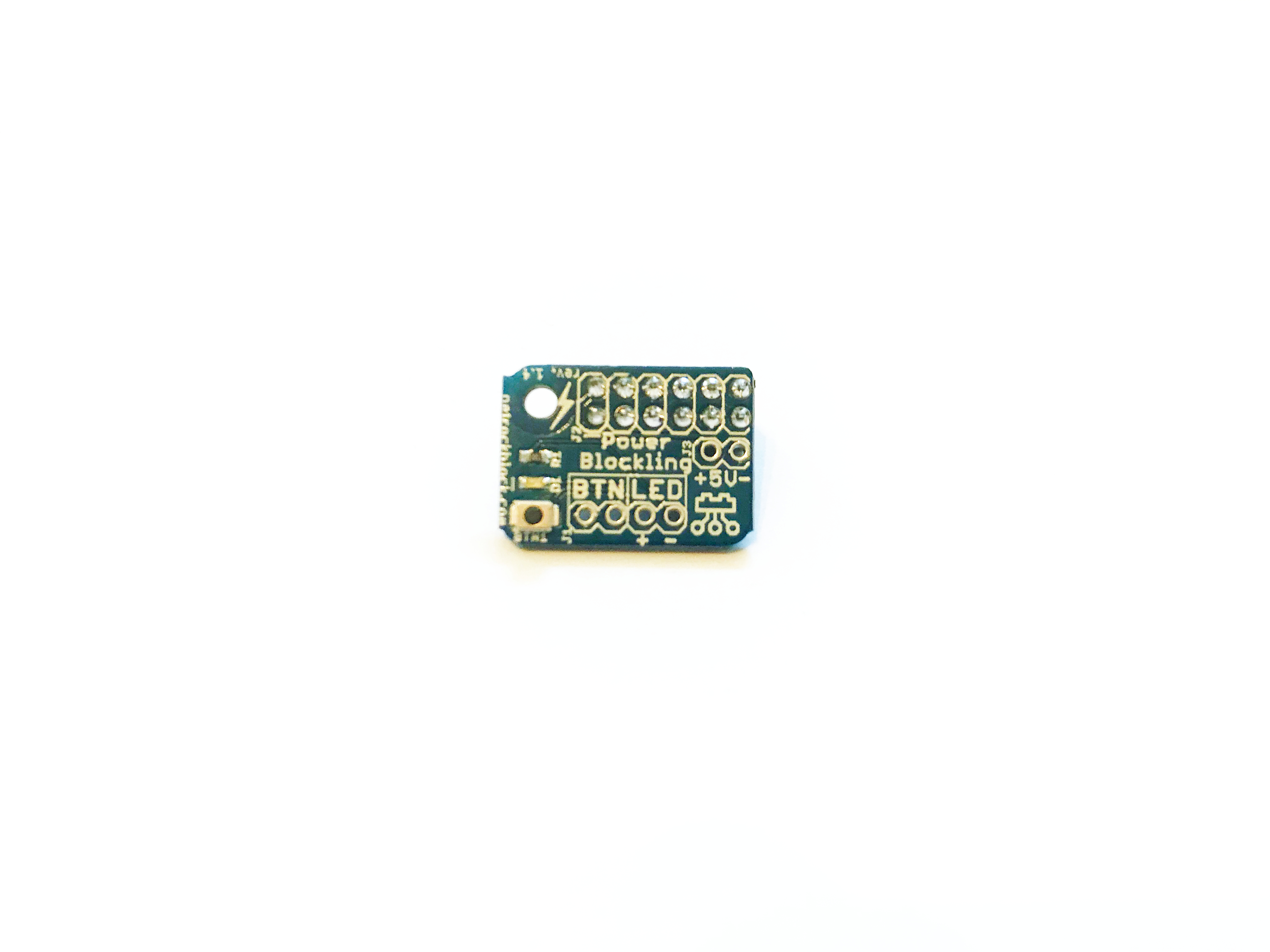

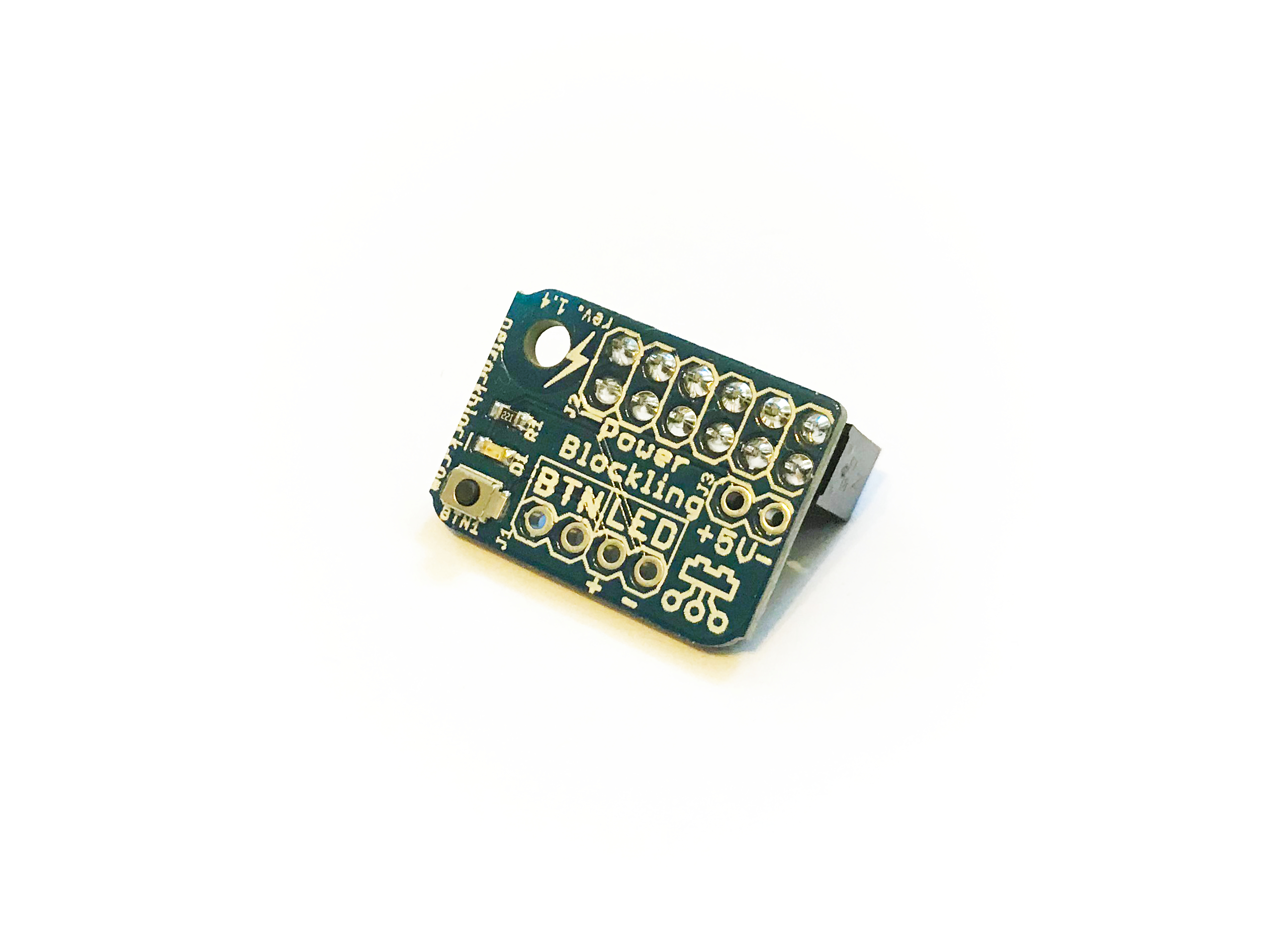

The PowerBlockling is a tiny power button and status indicator solution for the Raspberry Pi.

  • Tiny momentary power button
  • Does safe shutdowns without data losses and switches the Raspberry on with a press of the button
  • Green LED for indicating on and off power status

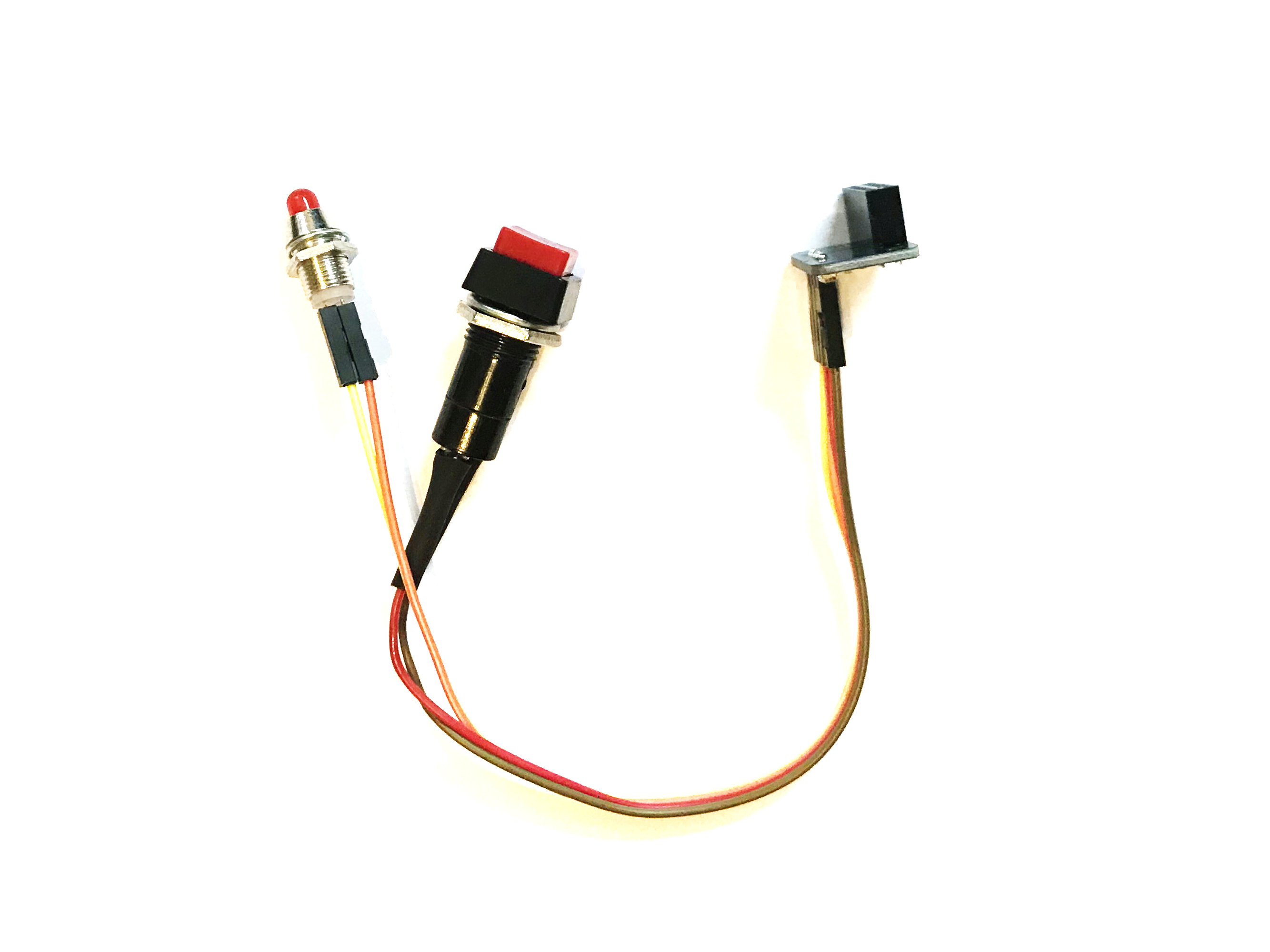

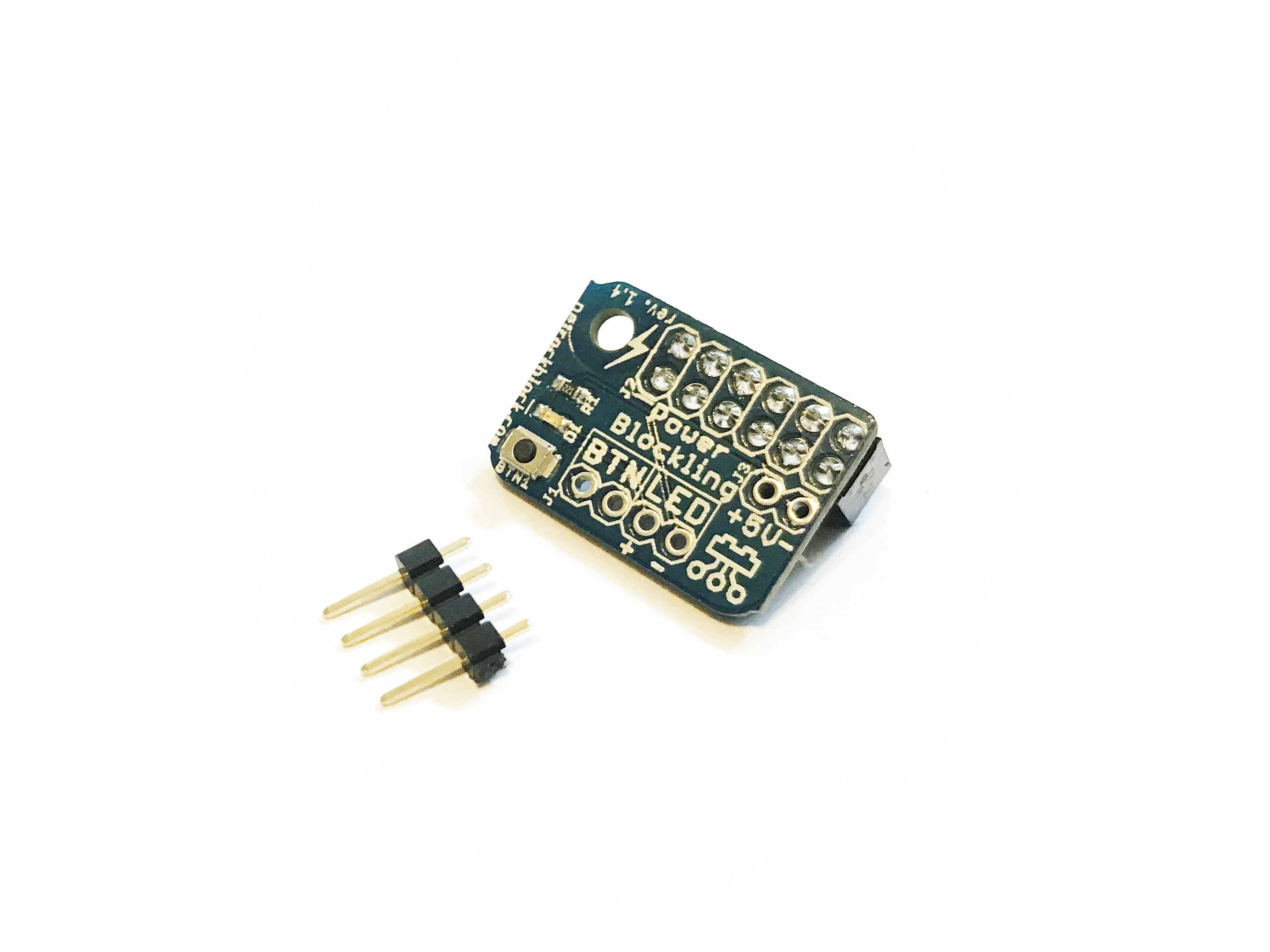

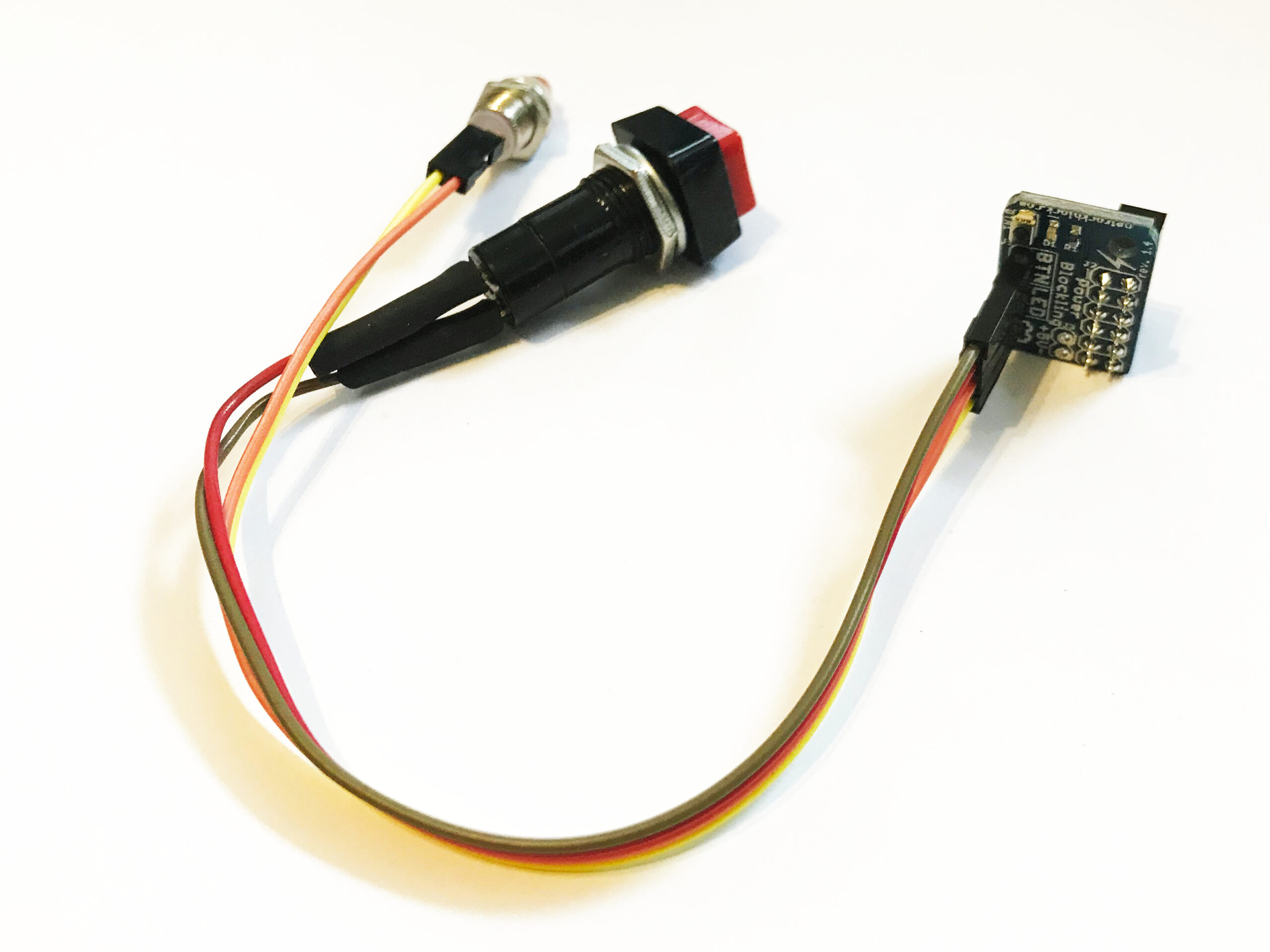

  • 1×4 male pin header (included, but needs to be soldered) for attaching optional external power button and indicator LED
  • One mounting hole for fastening the board
  • One-line installation within seconds

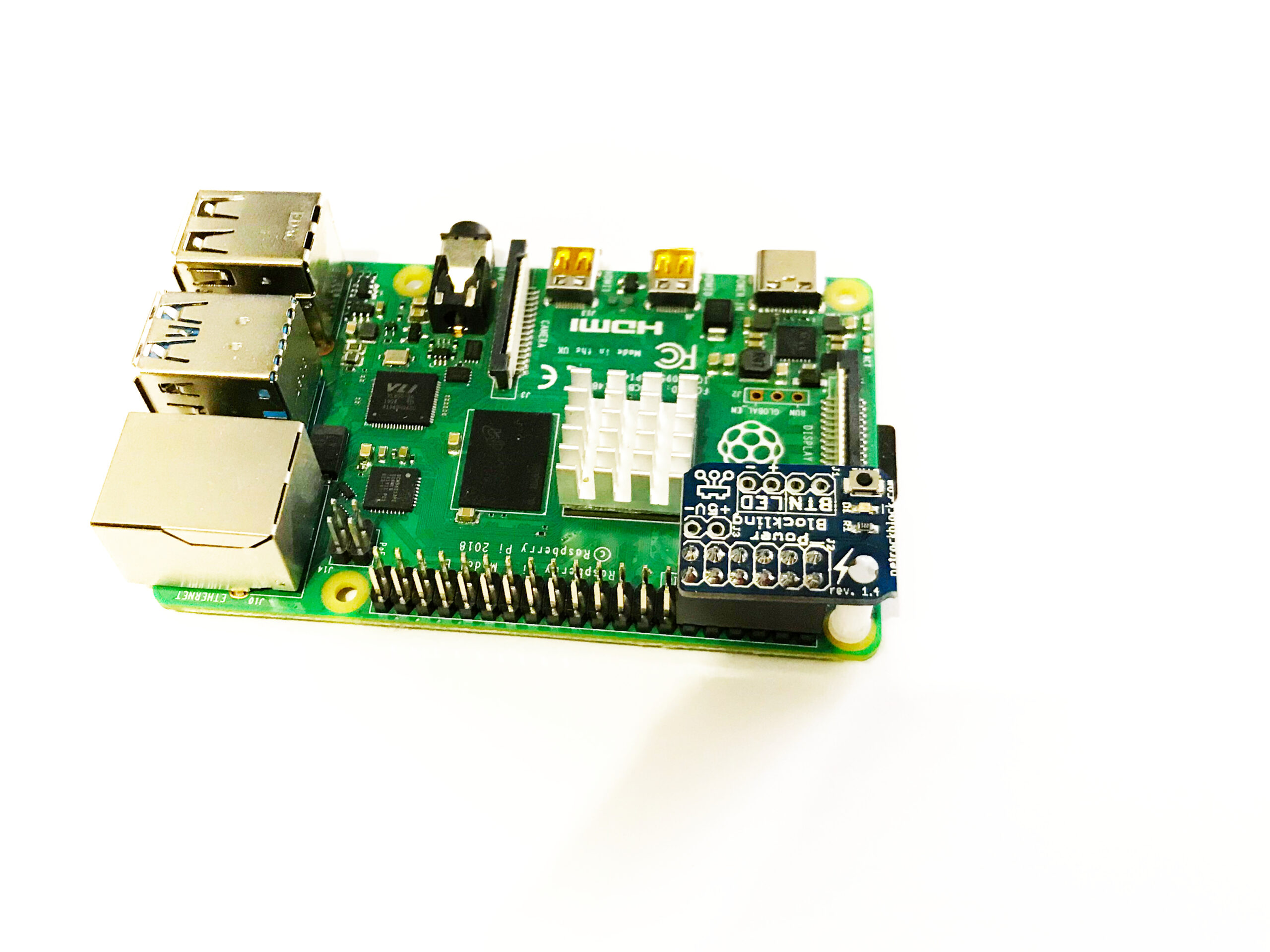

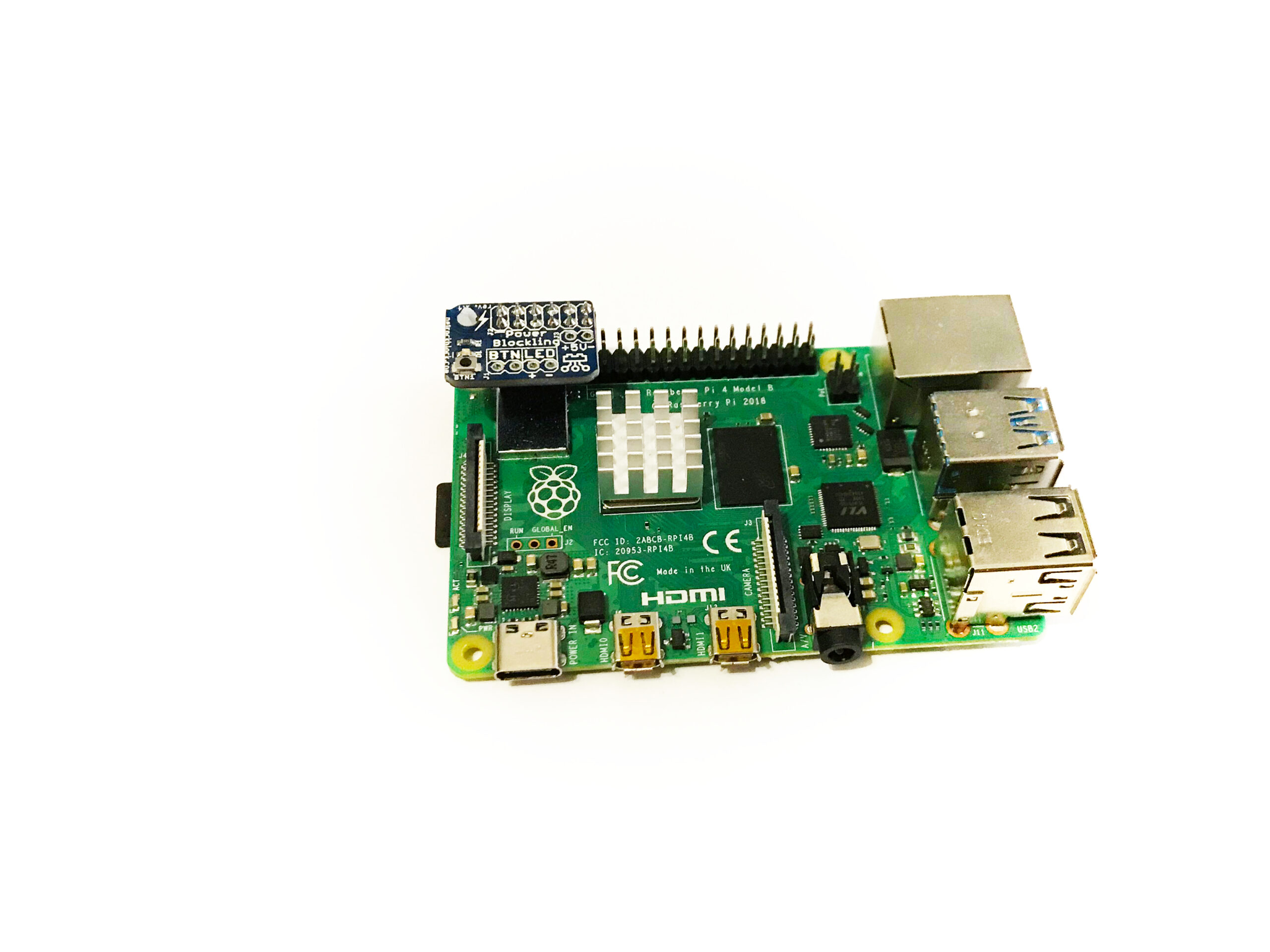

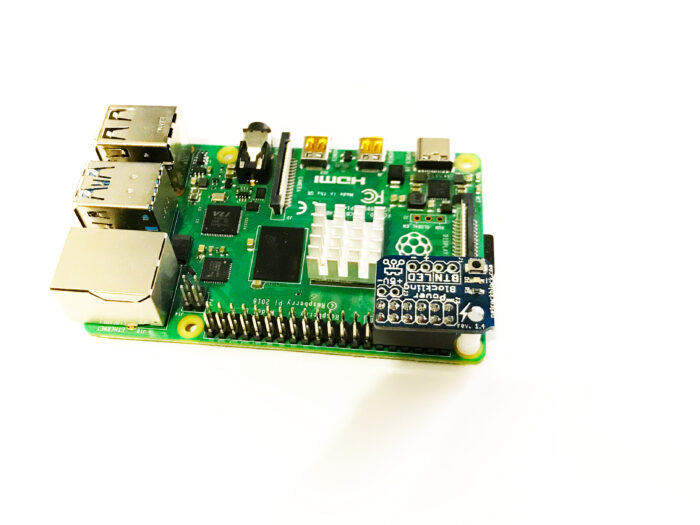

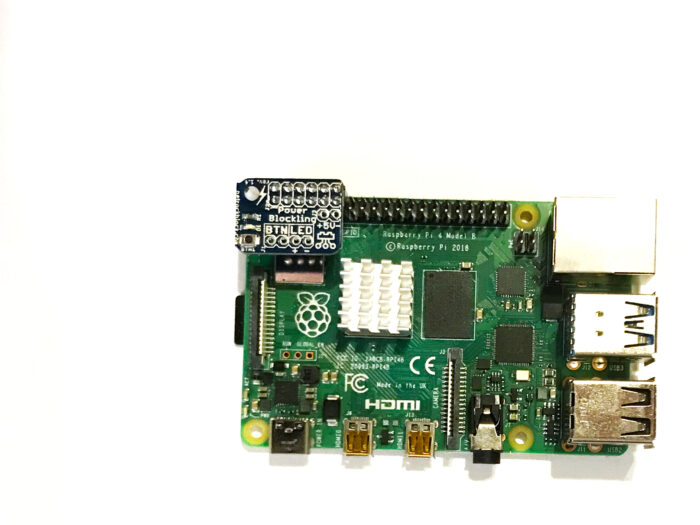

  • Uses the first 2×6 pins of the GPIO header

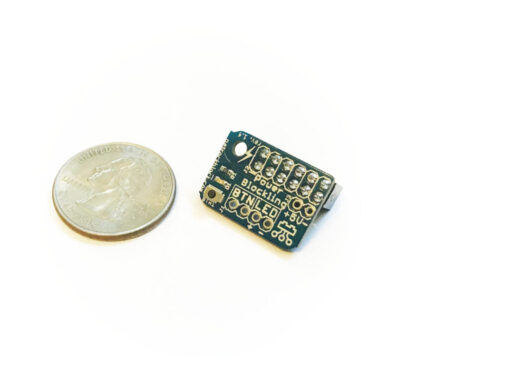

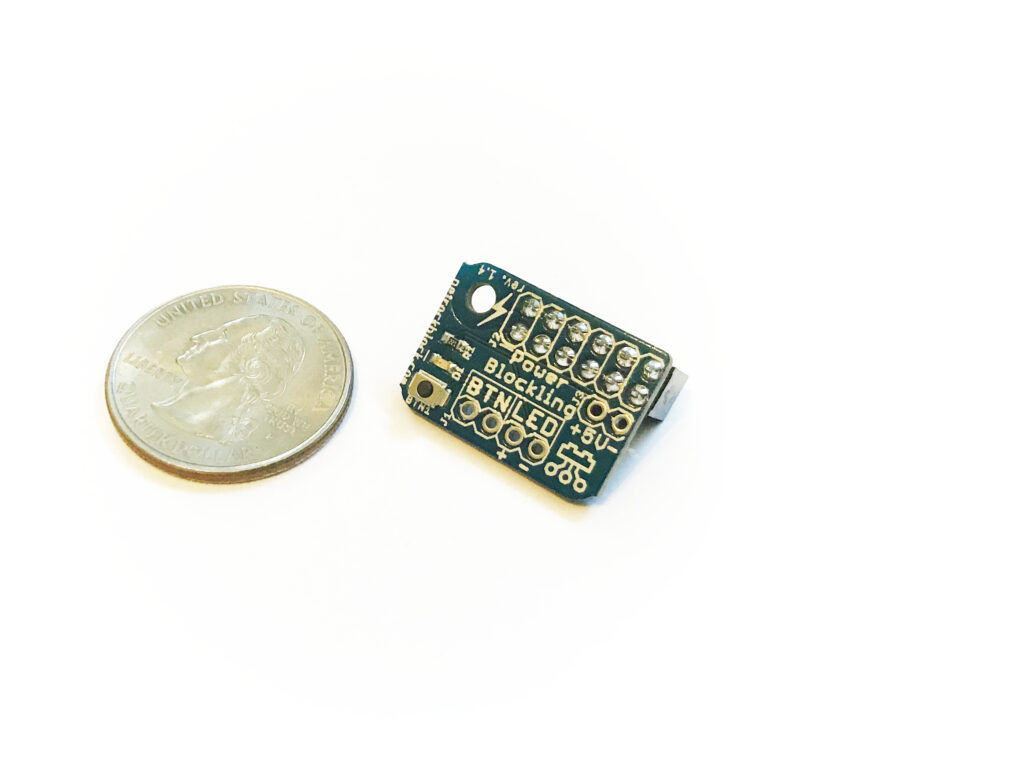

  • A Raspberry Pi and a quarter are not included.

The PowerBlockling is our simplest and most affordable power button solution for the Raspberry Pi. Its momentary button and indicator LED give you the power button that the Raspberry Pi is missing without any soldering.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

You can find information about getting started and the driver installation here.



More Advanced Power Button

Alternatively to the PowerBlockling, we also offer the more advanced PowerBlock with more features and flexibility. Here is a comparison table:

PowerBlockling

PowerBlock

Safe Power Button Supported Supported
Status Indication ON, OFF (Standby) Booting, ON, Shutting Down, OFF
Supported Button Types Only momentary buttons Momentary and toggle buttons
Custom Script Execution at Shutdown Supported
Logging of power button events Supported
Optional External Signals Button, LED Button, LED, Status and Shutdown Signals
Configurable used GPIO pins Supported



If you are looking for a more elaborate power button solution with support for momentary as well as toggle buttons and a more detailed power status indication functionality you should take a look at the PowerBlock. Also, the PowerBlock does not make use of the standby mode, but fully enables and disables the power supply to the Raspberry itself.

Additional information

Weight 0.05 kg
Getting Started Information

https://www.petrockblock.com/powerblockling/

Brand

petrockblock.com

MPN

000401
